Nginx+Keepalived高可用架構平台

Nginx高性能、穩定性成為IT人士青睐的http和反向代理服務器。今天我們來一起來溫習一下Nginx+Keepalived高可用配置，鑒於互聯網類似的優秀文章很多，這裡僅供參考和交流。

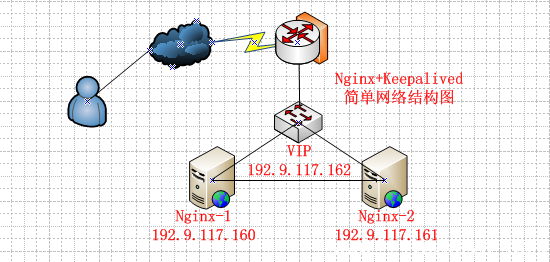

一、實驗環境：

系統環境：CentOS 6.0 x86_64
Nginx版本：nginx v1.2.4
Keepalived版本：keepalived v1.2.1
Nginx-1：192.9.117.160 （Master）
Nginx-2：192.9.117.161 （Backup）

二、Nginx安裝配置：

分別在兩台服務器安裝Nginx、keepalived，如下：
yum install -y pcre-devel 安裝perl 兼容的正規表達式庫

tar -xzf nginx-1.2.4.tar.gz && cd nginx-1.2.4 ; sed -i -e 's/1.2.2//g' -e 's/nginx\//TDTWS/g' -e 's/"NGINX"/"TDTWS"/g' src/core/nginx.h &&./configure --prefix=/usr/local/nginx --user=www --group=www  --with-http_stub_status_module --with-http_ssl_module

三、Keepalived安裝配置：

tar -xzvf keepalived-1.2.1.tar.gz &&cd keepalived-1.2.1 && ./configure && make && make install
if
[ $? -eq 0 ];then
echo "Install keepalived success,please waiting configure keepalived ..............."
else
echo "Install keepalived failed ,please check install version !"
exit 0
fi
DIR=/usr/local/ ;cp $DIR/etc/rc.d/init.d/keepalived  /etc/rc.d/init.d/ ; cp $DIR/etc/sysconfig/keepalived /etc/sysconfig/ ; mkdir -p /etc/keepalived ; cp $DIR/sbin/keepalived /usr/sbin/

Nginx、Keepalived軟件安裝完畢，接下來進行詳細配置。

四、配置Keepalived：

兩台服務器端keepalived.conf內容都為如下，都設置為backup，不搶占，注意修改優先級不同：

! Configuration File for keepalived
global_defs {
notification_email {
[email protected]
}
notification_email_from [email protected]
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id LVS_DEVEL
}
vrrp_script chk_nginx {
script "/data/sh/check_nginx.sh"
interval 2
weight 2
}
# VIP1
vrrp_instance VI_1 {
state BACKUP
interface eth0
lvs_sync_daemon_inteface eth0
virtual_router_id 151
priority 100
advert_int 5
nopreempt
authentication {
auth_typePASS
auth_pass 1111
}
virtual_ipaddress {
192.9.117.162
}
track_script {
chk_nginx
}
}

如上配置，我們需要自己建立check_nginx腳本，以方便檢查本地Nginx是否存活更好的切換。Check_nginx.sh腳本內容如下：

#!/bin/bash
#auto check nginx process
#2012-10-16 wugk
killall -0 nginx
if
[[ $? -ne 0 ]];then
/etc/init.d/keepalived stop
fi

五、Nginx 配置：

在兩台Nginx服務器分別新建index.html測試頁面，然後啟動Nginx服務測試。

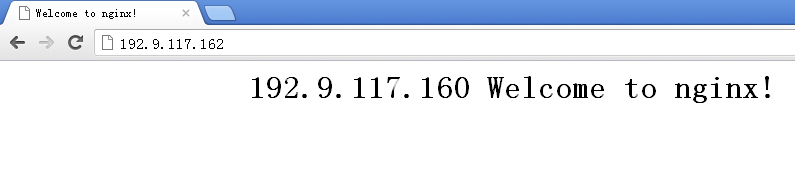

訪問VIP http://192.9.117.162 如下：

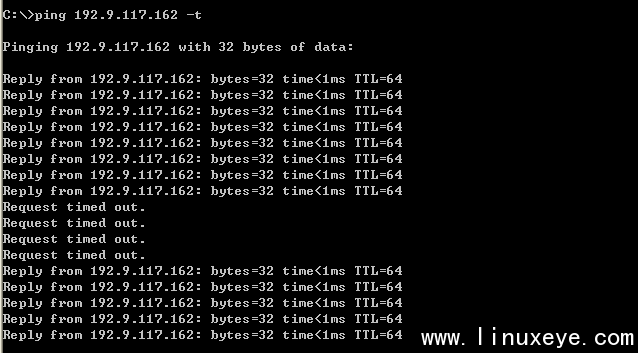

Down掉192.9.117.160的Nginx服務，分別查看keepalived後台日志和ping VIP日志如下：
Oct 16 16:47:48 localhost Keepalived: Stopping Keepalived v1.2.1 (10/16,2012)
Oct 16 16:47:49 localhost Keepalived_vrrp: Terminating VRRP child process on signal
