centos6.2 安裝 IOU-web-interface 筆記

日期:2017/3/2 10:02:46   编辑:關於Linux

一、環境:

vmware workstaion 9.0

centos 6.2

iou-web

二、安裝

1.安裝好虛擬機 vmware workstation 9.0

2.設置虛擬機

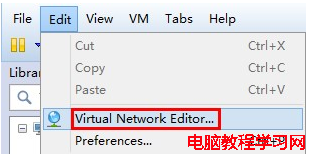

第一步,打開虛擬機網絡編輯器,如圖:

iou1

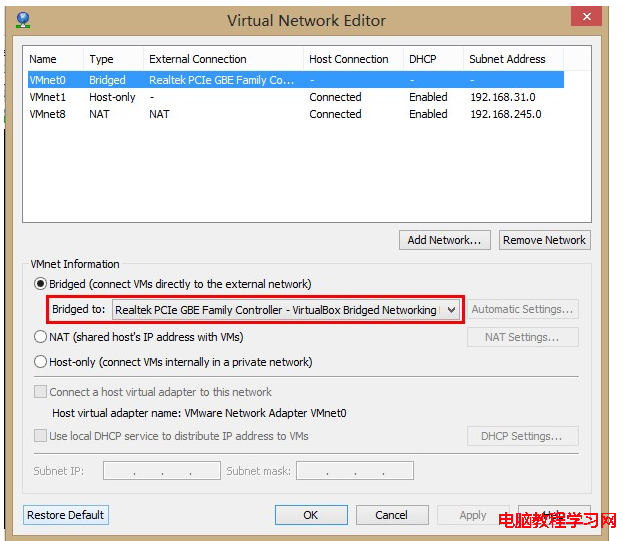

第二步,設置VMnet0 橋接網卡連接到 宿主機的物理網卡上,如圖:

IOU2

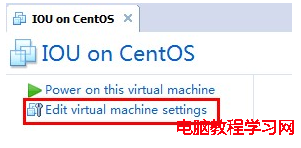

第三步 ,點擊編輯虛擬機設置,如圖:

IOU3

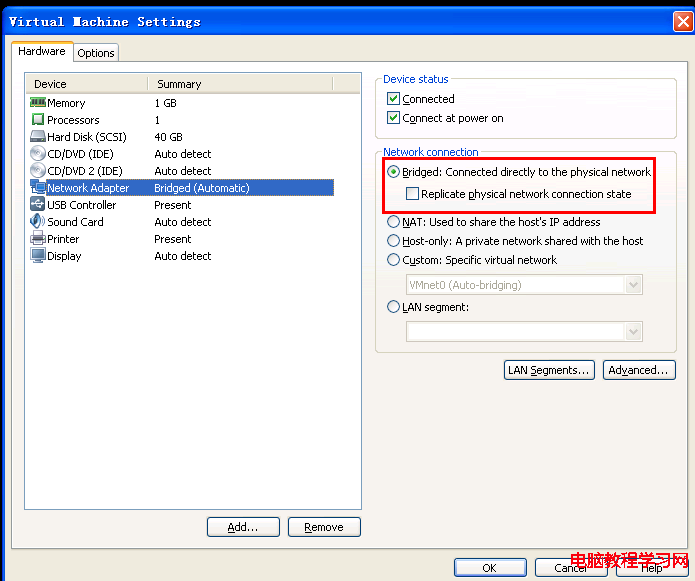

第四步,設置虛擬機網卡為橋接模式,如圖:

iou4

內存最好設置在1G以上。

三, 安裝centos 6.2 及 iou-web

1,安裝centos6.2 (這一步我就不詳細說了)

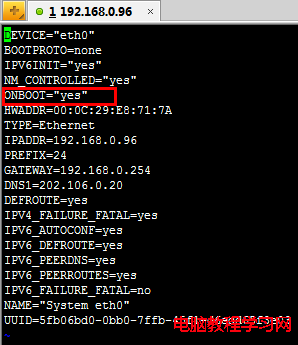

2,centos的網卡配置默認開機不啟動,需要修改:

# vim /etc/sysconfig/network-scripts/ifcfg-eth0

如圖:

iou5

在這裡我用的是靜態ip ,也可以改成dhcp ,確保能ping 通宿主機就可以 。

重啟網絡服務: #service network restart

然後使用xshell(或者其他的連接工具都可以,xshell下載地址)登陸到 centos中

3. 安裝 iou-web

第一步,在安裝iou-web之前,首先關閉selinux和iptables

關閉selinux:

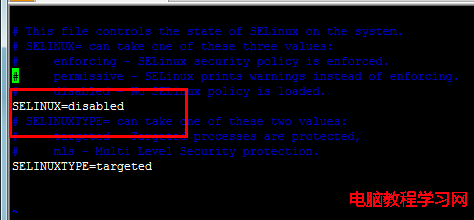

#vim /etc/selinux/config #將紅色區域改為disable 如圖:

iou6

關閉 防火牆:

#service iptables stop

#chkconfig iptables off

第二步: 添加iou-web yum源

# /etc/yum.repos.d/iou-web.repo

[iou-web]
name=IOU Web Interface
baseurl=http://public.routereflector.com/iou-web/yum
enabled=1
gpgcheck=1
gpgkey=http://public.routereflector.com/iou-web/yum/RPM-GPG-KEY-iou-web
Then install iou-web package:
