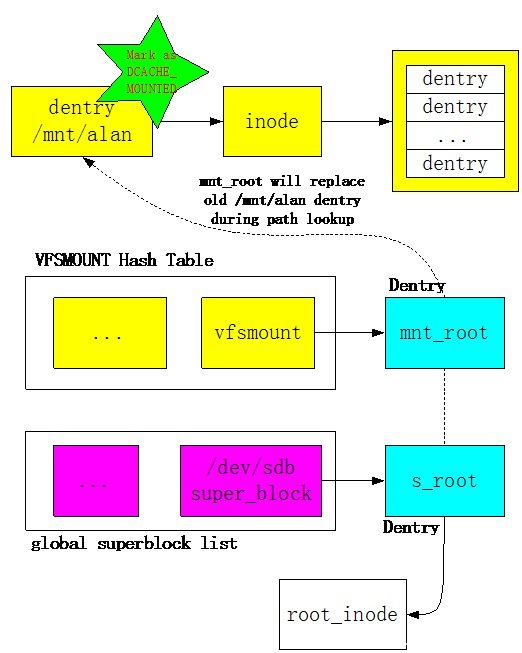

struct vfsmount {
struct list_head mnt_hash; /* 連接到VFSMOUNT Hash Table */
struct vfsmount *mnt_parent; /* 指向mount樹中的父節點 */
struct dentry *mnt_mountpoint; /* 指向mount點的目錄項 */
struct dentry *mnt_root; /* 被mount的文件系統根目錄項 */
struct super_block *mnt_sb; /* 指向被mount的文件系統superblock */
#ifdef CONFIG_SMP
struct mnt_pcp __percpu *mnt_pcp;
atomic_t mnt_longterm; /* how many of the refs are longterm */
#else
int mnt_count;
int mnt_writers;
#endif

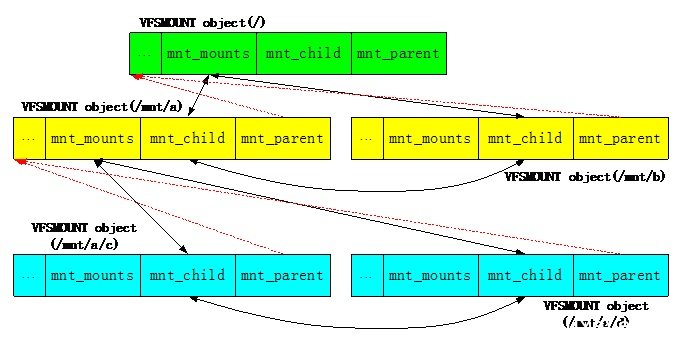

struct list_head mnt_mounts; /* 下級（child）vfsmount對象鏈表 */
struct list_head mnt_child; /* 鏈入上級vfsmount對象的鏈表點 */
int mnt_flags;
/* 4 bytes hole on 64bits arches without fsnotify */
#ifdef CONFIG_FSNOTIFY
__u32 mnt_fsnotify_mask;
struct hlist_head mnt_fsnotify_marks;
#endif
const char *mnt_devname; /* 文件系統所在的設備名字，例如/dev/sdb */
struct list_head mnt_list;
struct list_head mnt_expire; /* link in fs-specific expiry list */
struct list_head mnt_share; /* circular list of shared mounts */
struct list_head mnt_slave_list;/* list of slave mounts */
struct list_head mnt_slave; /* slave list entry */
struct vfsmount *mnt_master; /* slave is on master->mnt_slave_list */
struct mnt_namespace *mnt_ns; /* containing namespace */
int mnt_id; /* mount identifier */
int mnt_group_id; /* peer group identifier */
int mnt_expiry_mark; /* true if marked for expiry */
int mnt_pinned;
int mnt_ghosts;
};
struct super_block {
struct list_head s_list; /* 鏈入全局鏈表的對象*/
dev_t s_dev; /* search index; _not_ kdev_t */
unsigned char s_dirt;
unsigned char s_blocksize_bits;
unsigned long s_blocksize;
loff_t s_maxbytes; /* Max file size */
struct file_system_type *s_type;
const struct super_operations *s_op; /* superblock操作函數集 */
const struct dquot_operations *dq_op;
const struct quotactl_ops *s_qcop;
const struct export_operations *s_export_op;
unsigned long s_flags;
unsigned long s_magic;
struct dentry *s_root; /* 文件系統根目錄項 */
struct rw_semaphore s_umount;
struct mutex s_lock;
int s_count;
atomic_t s_active;
#ifdef CONFIG_SECURITY
void *s_security;
#endif
const struct xattr_handler **s_xattr;
struct list_head s_inodes; /* all inodes */
struct hlist_bl_head s_anon; /* anonymous dentries for (nfs) exporting */
#ifdef CONFIG_SMP
struct list_head __percpu *s_files;
#else
struct list_head s_files;
#endif
/* s_dentry_lru, s_nr_dentry_unused protected by dcache.c lru locks */
struct list_head s_dentry_lru; /* unused dentry lru */
int s_nr_dentry_unused; /* # of dentry on lru */
/* s_inode_lru_lock protects s_inode_lru and s_nr_inodes_unused */
spinlock_t s_inode_lru_lock ____cacheline_aligned_in_smp;
struct list_head s_inode_lru; /* unused inode lru */
int s_nr_inodes_unused; /* # of inodes on lru */
struct block_device *s_bdev;
struct backing_dev_info *s_bdi;
struct mtd_info *s_mtd;
struct list_head s_instances;
struct quota_info s_dquot; /* Diskquota specific options */
int s_frozen;
wait_queue_head_t s_wait_unfrozen;
char s_id[32]; /* Informational name */
u8 s_uuid[16]; /* UUID */
void *s_fs_info; /* Filesystem private info */
fmode_t s_mode;
/* Granularity of c/m/atime in ns.
Cannot be worse than a second */
u32 s_time_gran;
/*
* The next field is for VFS *only*. No filesystems have any business
* even looking at it. You had been warned.
*/
struct mutex s_vfs_rename_mutex; /* Kludge */
/*
* Filesystem subtype. If non-empty the filesystem type field
* in /proc/mounts will be "type.subtype"
*/
char *s_subtype;
/*
* Saved mount options for lazy filesystems using
* generic_show_options()
*/
char __rcu *s_options;
const struct dentry_operations *s_d_op; /* default d_op for dentries */
/*
* Saved pool identifier for cleancache (-1 means none)
*/
int cleancache_poolid;
struct shrinker s_shrink; /* per-sb shrinker handle */
};
SYSCALL_DEFINE5(mount, char __user *, dev_name, char __user *, dir_name,
char __user *, type, unsigned long, flags, void __user *, data)
{
int ret;
char *kernel_type;
char *kernel_dir;
char *kernel_dev;
unsigned long data_page;
/* 獲取mount類型 */
ret = copy_mount_string(type, &kernel_type);
if (ret < 0)
goto out_type;
/* 獲取mount點目錄字符串 */
kernel_dir = getname(dir_name);
if (IS_ERR(kernel_dir)) {
ret = PTR_ERR(kernel_dir);
goto out_dir;
}
/* 獲取設備名稱字符串 */
ret = copy_mount_string(dev_name, &kernel_dev);
if (ret < 0)
goto out_dev;
/* 獲取其它選項 */
ret = copy_mount_options(data, &data_page);
if (ret < 0)
goto out_data;
/* 主要函數，執行掛載文件系統的具體操作 */
ret = do_mount(kernel_dev, kernel_dir, kernel_type, flags,
(void *) data_page);
free_page(data_page);
out_data:
kfree(kernel_dev);
out_dev:
putname(kernel_dir);
out_dir:
kfree(kernel_type);
out_type:
return ret;
}
long do_mount(char *dev_name, char *dir_name, char *type_page,
unsigned long flags, void *data_page)
{
struct path path;
int retval = 0;
int mnt_flags = 0;
。。。
/* 通過mount目錄字符串獲取path，path結構中包含有mount目錄的dentry目錄對象 */
retval = kern_path(dir_name, LOOKUP_FOLLOW, &path);
if (retval)
return retval;
。。。
/* Separate the per-mountpoint flags */
if (flags & MS_NOSUID)
mnt_flags |= MNT_NOSUID;
if (flags & MS_NODEV)
mnt_flags |= MNT_NODEV;
if (flags & MS_NOEXEC)
mnt_flags |= MNT_NOEXEC;
if (flags & MS_NOATIME)
mnt_flags |= MNT_NOATIME;
if (flags & MS_NODIRATIME)
mnt_flags |= MNT_NODIRATIME;
if (flags & MS_STRICTATIME)
mnt_flags &= ~(MNT_RELATIME | MNT_NOATIME);
if (flags & MS_RDONLY)
mnt_flags |= MNT_READONLY;
flags &= ~(MS_NOSUID | MS_NOEXEC | MS_NODEV | MS_ACTIVE | MS_BORN |
MS_NOATIME | MS_NODIRATIME | MS_RELATIME| MS_KERNMOUNT |
MS_STRICTATIME);
/* remount操作 */
if (flags & MS_REMOUNT)
retval = do_remount(&path, flags & ~MS_REMOUNT, mnt_flags,
data_page);
else if (flags & MS_BIND)
retval = do_loopback(&path, dev_name, flags & MS_REC);
else if (flags & (MS_SHARED | MS_PRIVATE | MS_SLAVE | MS_UNBINDABLE))
retval = do_change_type(&path, flags);
else if (flags & MS_MOVE)
retval = do_move_mount(&path, dev_name);
else
/* 正常的mount操作，完成具體的mount操作 */
retval = do_new_mount(&path, type_page, flags, mnt_flags,
dev_name, data_page);
dput_out:
path_put(&path);
return retval;
}
static int do_new_mount(struct path *path, char *type, int flags,
int mnt_flags, char *name, void *data)
{
struct vfsmount *mnt;
int err;
。。。
/* 在內核建立vfsmount對象和superblock對象 */
mnt = do_kern_mount(type, flags, name, data);
if (IS_ERR(mnt))
return PTR_ERR(mnt);
/* 將vfsmount對象加入系統，屏蔽原有dentry對象 */
err = do_add_mount(mnt, path, mnt_flags);
if (err)
mntput(mnt);
return err;
}
static struct file_system_type ext3_fs_type = {
.owner = THIS_MODULE,
.name = "ext3",
.mount = ext3_mount, /* ext3文件系統mount方法 */
.kill_sb = kill_block_super,
.fs_flags = FS_REQUIRES_DEV,
};
struct dentry *mount_bdev(struct file_system_type *fs_type,
int flags, const char *dev_name, void *data,
int (*fill_super)(struct super_block *, void *, int))
{
struct block_device *bdev;
struct super_block *s;
fmode_t mode = FMODE_READ | FMODE_EXCL;
int error = 0;
if (!(flags & MS_RDONLY))
mode |= FMODE_WRITE;
/* 通過設備名字獲取被mount設備的bdev對象 */
bdev = blkdev_get_by_path(dev_name, mode, fs_type);
if (IS_ERR(bdev))
return ERR_CAST(bdev);
/*
* once the super is inserted into the list by sget, s_umount
* will protect the lockfs code from trying to start a snapshot
* while we are mounting
*/
mutex_lock(&bdev->bd_fsfreeze_mutex);
if (bdev->bd_fsfreeze_count > 0) {
mutex_unlock(&bdev->bd_fsfreeze_mutex);
error = -EBUSY;
goto error_bdev;
}
/* 查找或者創建superblock對象 */
s = sget(fs_type, test_bdev_super, set_bdev_super, bdev);
mutex_unlock(&bdev->bd_fsfreeze_mutex);
if (IS_ERR(s))
goto error_s;
if (s->s_root) {
/* 被mount文件系統的根目錄項已經存在 */
if ((flags ^ s->s_flags) & MS_RDONLY) {
deactivate_locked_super(s);
error = -EBUSY;
goto error_bdev;
}
/*
* s_umount nests inside bd_mutex during
* __invalidate_device(). blkdev_put() acquires
* bd_mutex and can't be called under s_umount. Drop
* s_umount temporarily. This is safe as we're
* holding an active reference.
*/
up_write(&s->s_umount);
blkdev_put(bdev, mode);
down_write(&s->s_umount);
} else {
/* 文件系統根目錄項不存在，通過filler_super函數讀取磁盤上的superblock元數據信息，並且初始化superblock內存結構 */
char b[BDEVNAME_SIZE];
s->s_flags = flags | MS_NOSEC;
s->s_mode = mode;
strlcpy(s->s_id, bdevname(bdev, b), sizeof(s->s_id));
sb_set_blocksize(s, block_size(bdev));
/* 對於ext3文件系統，調用ext3_fill_super函數 */
error = fill_super(s, data, flags & MS_SILENT ? 1 : 0);
if (error) {
deactivate_locked_super(s);
goto error;
}
s->s_flags |= MS_ACTIVE;
bdev->bd_super = s;
}
/* 正常返回被mount文件系統根目錄項 */
return dget(s->s_root);
error_s:
error = PTR_ERR(s);
error_bdev:
blkdev_put(bdev, mode);
error:
return ERR_PTR(error);
}
