RabbitMq 集群搭建，rabbitmq集群搭建

RabbitMq 集群搭建，rabbitmq集群搭建

實驗環境：

操作系統為 Centos 7.2

IP hostName

192.168.190.132 node132

192.168.190.139 node139

192.168.190.140 node140

RabbitMQ相關端口

• 4369 (epmd)
• 5672, 5671 (AMQP 0-9-1 and 1.0 without and with TLS)
• 25672. This port used by Erlang distribution for inter-node and CLI tools communication and is allocated from a dynamic range (limited to a single port by default, computed as AMQP port + 20000). Seenetworking guide for details.
• 15672 (if management plugin is enabled)
• 61613, 61614 (if STOMP is enabled)
• 1883, 8883 (if MQTT is enabled)



  相應端口開啟防火牆設置





  添加EPEL源



  [root@node139 ~]# rpm -Uvh https://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm

  Retrieving https://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm

  warning: /var/tmp/rpm-tmp.2hDPSr: Header V3 RSA/SHA256 Signature, key ID 352c64e5: NOKEY

  Preparing... ################################# [100%]

  Updating / installing...

  1:epel-release-7-8 ################################# [100%]




  添加Erlang源



  [root@node139 ~]# rpm -Uvh http://packages.erlang-solutions.com/erlang-solutions-1.0-1.noarch.rpm

  Retrieving http://packages.erlang-solutions.com/erlang-solutions-1.0-1.noarch.rpm

  Preparing... ################################# [100%]

  Updating / installing...

  1:erlang-solutions-1.0-1 ################################# [100%]

  --2016-11-29 06:34:38-- http://packages.erlang-solutions.com/rpm/centos/erlang_solutions.repo

  Resolving packages.erlang-solutions.com (packages.erlang-solutions.com)... 31.172.186.53

  Connecting to packages.erlang-solutions.com (packages.erlang-solutions.com)|31.172.186.53|:80... connected.

  HTTP request sent, awaiting response... 200 OK

  Length: 245

  Saving to: 'erlang_solutions.repo'



  100%[==========================================================================>] 245 --.-K/s in 0s



  2016-11-29 06:34:39 (27.5 MB/s) - 'erlang_solutions.repo' saved [245/245]




  安裝RabbitMQ

  軟件版本：http://www.rabbitmq.com/releases/rabbitmq-server



  [root@node139 ~]# wget http://www.rabbitmq.com/releases/rabbitmq-server/v3.6.6/rabbitmq-server-3.6.6-1.el7.noarch.rpm

  [root@node139 ~]# rpm --import https://www.rabbitmq.com/rabbitmq-signing-key-public.asc

  [root@node139 ~]# yum install rabbitmq-server-3.6.6-1.el7.noarch.rpm



  啟動服務

  [root@node139 ~]# systemctl enable rabbitmq-server.service

  [root@node139 ~]# systemctl start rabbitmq-server.service




  啟用RabbitMQ監控插件

  [root@node139 ~]# rabbitmq-plugins enable rabbitmq_management

  The following plugins have been enabled:

  mochiweb

  webmachine

  rabbitmq_web_dispatch

  amqp_client

  rabbitmq_management_agent

  rabbitmq_management



  Applying plugin configuration to rabbit@node139... started 6 plugins.

  [root@node139 ~]# netstat -apn | grep 15672

  tcp 0 0 0.0.0.0:15672 0.0.0.0:* LISTEN 4119/beam.smp




  RabbitMQ用戶管理



  添加用戶（用戶名root，密碼admin）

  [root@node139 ~]# rabbitmqctl add_user admin admin



  設置用戶角色（設置admin用戶為管理員角色）

  [root@node139 ~]# rabbitmqctl set_user_tags admin administrator

  Setting tags for user "admin" to [administrator] ...



  設置用戶權限（設置admin用戶配置、寫、讀的權限）

  [root@node139 ~]# rabbitmqctl set_permissions -p / admin ".*" ".*" ".*"

  Setting permissions for user "admin" in vhost "/" ...



  刪除用戶（刪除guest用戶）

  [root@node139 ~]# rabbitmqctl delete_user guest





  RabbitMQ集群配置

  集群配置在單機配置完成的基礎上進行

  以下以node140為例，node132需要做同樣的操作

  • 添加/etc/hosts條目

  在node132、node139、node140裡的/etc/hosts文件中分別添加：

  192.168.190.132 node132
  192.168.190.139 node139
  192.168.190.140 node140



  • 設置每個節點Cookie

  Rabbitmq的集群是依賴於erlang的集群來工作的，所以必須先構建起erlang的集群環境。Erlang的集群中各節點是通過一個magic cookie來實現的，這個cookie存放在 /var/lib/rabbitmq/.erlang.cookie 中，文件是400的權限。所以必須保證各節點cookie保持一致，否則節點之間就無法通信



  [root@node140 /]# echo -n "AZVOCZYZZBVFLBPTBXU" > /var/lib/rabbitmq/.erlang.cookie

  [root@node140 ~]# chown rabbitmq:root /var/lib/rabbitmq/.erlang.cookie

  [root@node140 /]# chmod 600 /var/lib/rabbitmq/.erlang.cookie

  [root@node140 /]# cat /var/lib/rabbitmq/.erlang.cookie

  AZVOCZYZZBVFLBPTBXU



  啟動服務

  [root@node140 ~]# systemctl start rabbitmq-server.service

  [root@node140 ~]# rabbitmq-server -detached



  開通防火牆

  [root@node140 ~]# firewall-cmd --permanent --add-port={4369/tcp,25672/tcp}

  success

  [root@node140 ~]# firewall-cmd --reload

  success



• 加入集群

  默認是磁盤節點，如果是內存節點的話，需要加--ram參數



  [root@node140 ~]# rabbitmqctl stop_app

  Stopping node rabbit@node140 ...

  [root@node140 ~]# rabbitmqctl join_cluster rabbit@node139

  Clustering node rabbit@node140 with rabbit@node139 ...

  [root@node140 ~]# rabbitmqctl start_app

  Starting node rabbit@node140 ...

• 設置鏡像策略



  [root@node140 ~]# rabbitmqctl set_policy ha-all "^" '{"ha-mode":"all","ha-sync-mode":"automatic"}'

  Setting policy "ha-all" for pattern "^" to "{\"ha-mode\":\"all\",\"ha-sync-mode\":\"automatic\"}" with priority "0" …




  啟用RabbitMQ監控插件

  cluster搭建起來後若在web管理工具中rabbitmq_management的Overview的Nodes部分看到"Node statistics not available"的信息，說明在該節點上web管理插件還未啟用。

  [root@node140 ~]# rabbitmq-plugins enable rabbitmq_management

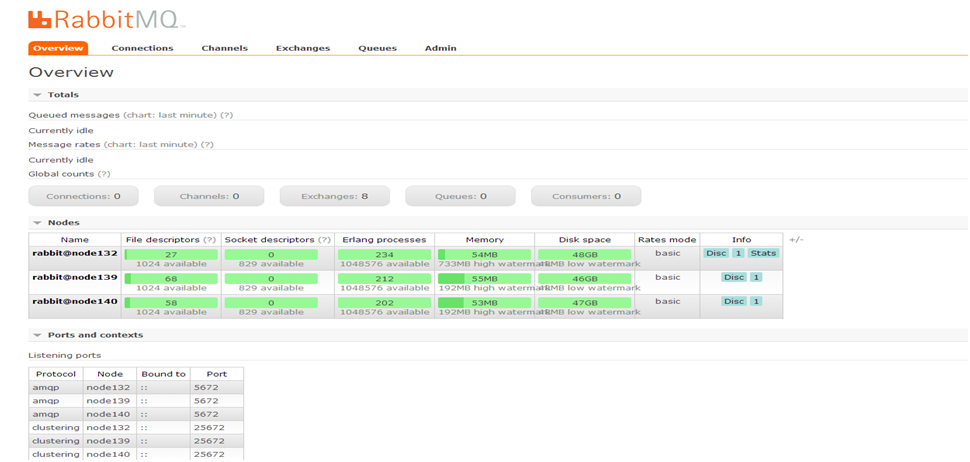

  集群配置好後，可以在 RabbitMQ 任意節點上執行下面的命令來查看是否集群配置成功。

  [root@node140 ~]# rabbitmqctl cluster_status



  其它節點需要做同樣的操作

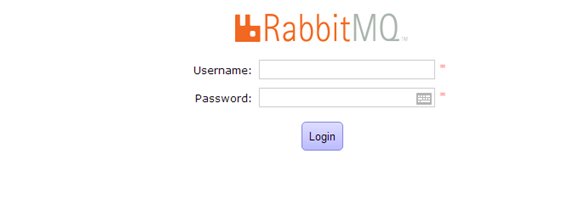

  登錄站點http://192.168.190.139:15672/















  參考網址：http://www.rabbitmq.com/clustering.html

  安裝中遇到的問題：

  這個/var/lib/rabbitmq/.erlang.cookie文件需要修改文件所有者和文件的權限為rw，否則rabbitmq服務無法啟動；
