環境
tomcat：/home/tomcat-6.0.45
oms-client
站點程序：/home/oms-client/oms-book-client
站點tomcat實例：/home/oms-client/tomcat6-sever1
端口：38080
bms-client
站點程序：/home/bms-client/bms-book-client
站點tomcat實例：/home/bms-client/tomcat6-sever2
端口：48080
安裝很簡單，配置好jdk與解壓tomcat即可
我們首先看到的是tomcat的目錄結構，其每個文件夾有以下用途：
當我們運行Tomcat時，會用到5個環境變量。他們是：
在以上列表中，CATALINA_HOME和JAVA_HOME是必要的環境變量。其它的都可以通過CATALINA_HOME來轉換，是可選的。
CATALINA_HOME – 此環境變量是tomcat安裝/提取的根目錄。所以通過CATALINA_HOME，可以得到bin和lib目錄。
CATALINA_BASE – 如果不指定則是CATALINA_HOME的值。該變量指向的目錄裡面包括每個運行實例需要使用自己的conf、logs、temp、webapps、work目錄。
一般運行Tomcat的方法是，只設置CATALINA_HOME變量，執行startup.sh腳本，startup.sh會自動轉換其它未設置的變量。

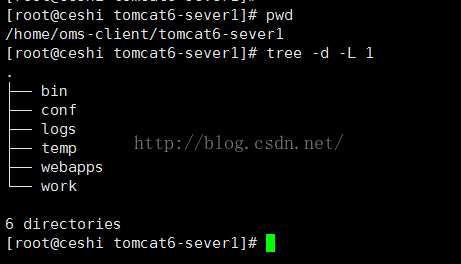

在tomcat安裝目錄下創建oms-client、bms-client，在oms-client創建tomcat實例1 tomcat6-server1 並且將conf、logs、temp、webapp、work目錄拷貝到這兩個目錄，然後tomcat安裝目錄可以全部留下。配置後的目錄結構如下：
備注：截圖中有bin目錄，實際上bin目錄只會放重新寫的啟動和刪除.sh,原文件都已刪除
3.1 配置tomcat6-server1
需要修改的端口是：Shutdown port，Connector port，ajp port和Redirect port。
Shutdown port – 此端口用於關閉Tomcat。當執行shutdown.sh腳本時，它會給此端口發出一個信號，Tomcat的進程會監聽此端口，如果接收到這樣的信號，進程會清理退出。
Connector port - 此端口是應用對外公開發布的端口。
ajp port – Web服務器（例如Apache的httpd Server）通過此端口和Tomcat進行通信，也可以使用它設置一個負載均衡服務器。
Redirect port – 如果此Connector支持非SSL請求和接收SSL請求，Catalina會自動將請求指向到此端口。
修改Shutdown port

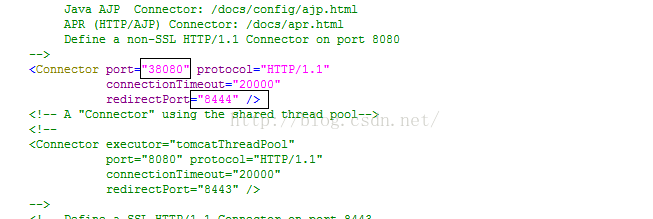

修改Connectors port 和 redirectPort
修改Connectors port 和 redirectPort

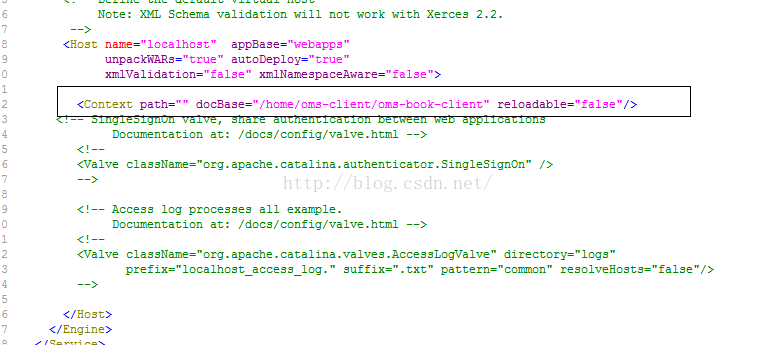

修改Host 加入
3.2 配置tomcat6-server2
同上，幾個端口號都要修改一樣
在/home/bms-client/tomcat6-sever1/bin、/home/bms-client/tomcat6-sever2/bin目錄下分別創建啟動腳本tomcat.sh, 兩個tomcat.sh的區別主要就是CATALINA_BASE不同
4.1 腳本內容tomcat.sh
4.2 啟動腳本賦權限
1 # chmod a+x tomcat.sh5.1 啟動/關閉a.ttlsa.com
1 2 3 4 5 6 啟動 # cd /home/oms-client/tomcat6-server1/bin # ./tomcat.sh start 關閉 # cd /home/oms-client/tomcat6-server1/bin # ./tomcat.sh stop5.2 啟動/關閉b.ttlsa.com
1 2 3 4 5 6 啟動 # cd /home/bms-client/tomcat6-server2/bin # ./tomcat.sh start 關閉 # cd /home/bms-client/tomcat6-server2/bin # ./tomcat.sh stop備注：一定需要cd到tomcat.sh的當前目錄下執行才可以
具體XML修改結果為：
<?xml version='1.0' encoding='utf-8'?>
<!--
Licensed to the Apache Software Foundation (ASF) under one or more
contributor license agreements. See the NOTICE file distributed with
this work for additional information regarding copyright ownership.
The ASF licenses this file to You under the Apache License, Version 2.0
(the "License"); you may not use this file except in compliance with
the License. You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
-->
<!-- Note: A "Server" is not itself a "Container", so you may not
define subcomponents such as "Valves" at this level.
Documentation at /docs/config/server.html
-->
<Server port="48005" shutdown="SHUTDOWN">
<!--APR library loader. Documentation at /docs/apr.html -->
<Listener className="org.apache.catalina.core.AprLifecycleListener" SSLEngine="on" />
<!--Initialize Jasp/" target="_blank">asper prior to webapps are loaded. Documentation at /docs/jasper-howto.html -->
<Listener className="org.apache.catalina.core.JasperListener" />
<!-- Prevent memory leaks due to use of particular java/javax APIs-->
<Listener className="org.apache.catalina.core.JreMemoryLeakPreventionListener" />
<!-- JMX Support for the Tomcat server. Documentation at /docs/non-existent.html -->
<Listener className="org.apache.catalina.mbeans.ServerLifecycleListener" />
<Listener className="org.apache.catalina.mbeans.GlobalResourcesLifecycleListener" />
<!-- Global JNDI resources
Documentation at /docs/jndi-resources-howto.html
-->
<GlobalNamingResources>
<!-- Editable user database that can also be used by
UserDatabaseRealm to authenticate users
-->
<Resource name="UserDatabase" auth="Container"
type="org.apache.catalina.UserDatabase"
description="User database that can be updated and saved"
factory="org.apache.catalina.users.MemoryUserDatabaseFactory"
pathname="conf/tomcat-users.xml" />
</GlobalNamingResources>
<!-- A "Service" is a collection of one or more "Connectors" that share
a single "Container" Note: A "Service" is not itself a "Container",
so you may not define subcomponents such as "Valves" at this level.
Documentation at /docs/config/service.html
-->
<Service name="Catalina">
<!--The connectors can use a shared executor, you can define one or more named thread pools-->
<!--
<Executor name="tomcatThreadPool" namePrefix="catalina-exec-"
maxThreads="150" minSpareThreads="4"/>
-->
<!-- A "Connector" represents an endpoint by which requests are received
and responses are returned. Documentation at :
Java/" target="_blank">Java HTTP Connector: /docs/config/http.html (blocking & non-blocking)
Java AJP Connector: /docs/config/ajp.html
APR (HTTP/AJP) Connector: /docs/apr.html
Define a non-SSL HTTP/1.1 Connector on port 8080
-->
<Connector port="48080" protocol="HTTP/1.1"
connectionTimeout="20000"
redirectPort="8445" />
<!-- A "Connector" using the shared thread pool-->
<!--
<Connector executor="tomcatThreadPool"
port="8080" protocol="HTTP/1.1"
connectionTimeout="20000"
redirectPort="8443" />
-->
<!-- Define a SSL HTTP/1.1 Connector on port 8443
This connector uses the JSSE configuration, when using APR, the
connector should be using the OpenSSL style configuration
described in the APR documentation -->
<!--
<Connector port="8443" protocol="HTTP/1.1" SSLEnabled="true"
maxThreads="150" scheme="https" secure="true"
clientAuth="false" sslProtocol="TLS" />
-->
<!-- Define an AJP 1.3 Connector on port 8009 -->
<Connector port="48009" protocol="AJP/1.3" redirectPort="8445" />
<!-- An Engine represents the entry point (within Catalina) that processes
every request. The Engine implementation for Tomcat stand alone
analyzes the HTTP headers included with the request, and passes them
on to the appropriate Host (virtual host).
Documentation at /docs/config/engine.html -->
<!-- You should set jvmRoute to support load-balancing via AJP ie :
<Engine name="Catalina" defaultHost="localhost" jvmRoute="jvm1">
-->
<Engine name="Catalina" defaultHost="localhost">
<!--For clustering, please take a look at documentation at:
/docs/cluster-howto.html (simple how to)
/docs/config/cluster.html (reference documentation) -->
<!--
<Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"/>
-->
<!-- The request dumper valve dumps useful debugging information about
the request and response data received and sent by Tomcat.
Documentation at: /docs/config/valve.html -->
<!--
<Valve className="org.apache.catalina.valves.RequestDumperValve"/>
-->
<!-- This Realm uses the UserDatabase configured in the global JNDI
resources under the key "UserDatabase". Any edits
that are performed against this UserDatabase are immediately
available for use by the Realm. -->
<Realm className="org.apache.catalina.realm.UserDatabaseRealm"
resourceName="UserDatabase"/>
<!-- Define the default virtual host
Note: XML Schema validation will not work with Xerces 2.2.
-->
<Host name="localhost" appBase="webapps"
unpackWARs="true" autoDeploy="true"
xmlValidation="false" xmlNamespaceAware="false">
<Context path="" docBase="/home/bms-client/hello" reloadable="false"/>
<!-- SingleSignOn valve, share authentication between web applications
Documentation at: /docs/config/valve.html -->
<!--
<Valve className="org.apache.catalina.authenticator.SingleSignOn" />
-->
<!-- Access log processes all example.
Documentation at: /docs/config/valve.html -->
<!--
<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
prefix="localhost_access_log." suffix=".txt" pattern="common" resolveHosts="false"/>
-->
</Host>
</Engine>
</Service>
</Server>
