三、創建管理
常用管理命令如下：
管理lv:
pv: pvcreate, pvdisplay, pvs, pvscan, pvremove, pvmove
vg: vgcreate, vgdisplay, vgs, vgscan, vgremove, vgextend, vgreduce
lv: lvcreate, lvdisplay, lvs, lvresize, lvextend, lvreduce, lvremove
1、PV相關操作
創建pv

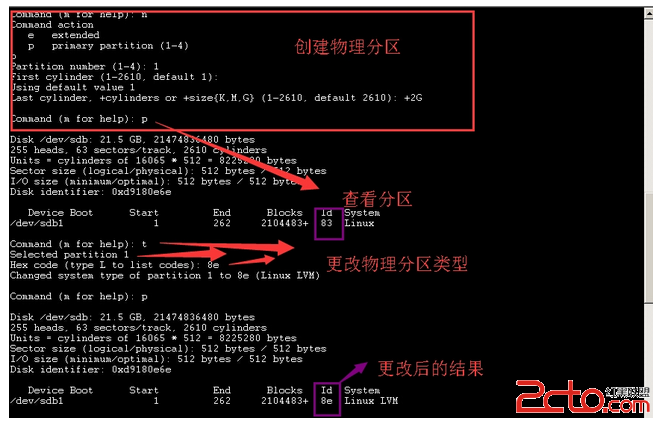

1.1、如圖（2） 使用fdisk創建物理磁盤分區
[root@www ~]# fdisk -l /dev/sdb
Disk /dev/sdb: 21.5 GB, 21474836480 bytes
255 heads, 63 sectors/track, 2610 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0xd9180e6e
Device Boot Start End Blocks Id System
/dev/sdb1 1 262 2104483+ 8e Linux LVM
/dev/sdb2 263 655 3156772+ 8e Linux LVM
[root@www ~]#
創建物理卷
pvcreate
[root@www ~]# pvcreate /dev/sdb1 /dev/sdb2//創建PV Physical volume "/dev/sdb1" successfully created Physical volume "/dev/sdb2" successfully created
查看PV
[root@www ~]# pvs//查看PV
PV VG Fmt Attr PSize PFree
/dev/sda2 vg0 lvm2 a-- 59.99g 7.99g
/dev/sdb1 lvm2 --- 2.01g 2.01g
/dev/sdb2 lvm2 --- 3.01g 3.01g
[root@www ~]# pvdisplay /dev/sdb[0-9]//可以看到詳細信息
--- Physical volume ---
PV Name /dev/sdb1
VG Name myvg
PV Size 2.01 GiB / not usable 3.16 MiB
Allocatable yes
PE Size 4.00 MiB
Total PE 513
Free PE 513
Allocated PE 0
PV UUID rA5Vdy-j2rr-b9Vf-zo8I-sjFD-1z23-VhHAgI
--- Physical volume ---
PV Name /dev/sdb2
VG Name myvg
PV Size 3.01 GiB / not usable 2.79 MiB
Allocatable yes
PE Size 4.00 MiB
Total PE 770
Free PE 770
Allocated PE 0
PV UUID GVtLyK-Ugd1-DKHo-3wHS-oia1-lbpz-PA4oma
[root@www ~]#
刪除pv
[root@www ~]# pvcreate /dev/sdb3 //創建pv Physical volume "/dev/sdb3" successfully created [root@www ~]# pvs //查看pv PV VG Fmt Attr PSize PFree /dev/sda2 vg0 lvm2 a-- 59.99g 7.99g /dev/sdb1 myvg lvm2 a-- 2.00g 0 /dev/sdb2 myvg lvm2 a-- 3.01g 2.01g /dev/sdb3 lvm2 --- 3.01g 3.01g [root@www ~]# pvremove /dev/sdb3 //刪除pv /dev/sdb3 Labels on physical volume "/dev/sdb3" successfully wiped [root@www ~]# pvs PV VG Fmt Attr PSize PFree /dev/sda2 vg0 lvm2 a-- 59.99g 7.99g /dev/sdb1 myvg lvm2 a-- 2.00g 0 /dev/sdb2 myvg lvm2 a-- 3.01g 2.01g
2、VG相關操作 創建VG vgcreate # vgcreate VGNAME /dev/PV1... [-s|--physicalextentsize PhysicalExtentSize[bBsSkKmMgGtTpPeE]] //指定PE大小 [-t|--test] //測試，不真正創建 [-v|--verbose]//顯示創建過程
[root@www ~]# vgcreate myvg /dev/sdb{1,2}
Volume group "myvg" successfully created
查看VG
[root@www ~]# vgs VG #PV #LV #SN Attr VSize VFree myvg 2 0 0 wz--n- 5.01g 5.01g vg0 1 4 0 wz--n- 59.99g 7.99g [root@www ~]# vgdisplay --- Volume group --- VG Name myvg System ID Format lvm2 Metadata Areas 2 Metadata Sequence No 1 VG Access read/write VG Status resizable MAX LV 0 Cur LV 0 Open LV 0 Max PV 0 Cur PV 2 Act PV 2 VG Size 5.01 GiB PE Size 4.00 MiB //PE 塊大小 Total PE 1283 Alloc PE / Size 0 / 0 Free PE / Size 1283 / 5.01 GiB VG UUID llSGpO-Bk51-KVBB-llAZ-AA9E-aBYq-sUrnPL
刪除vg
# vgremove VGNAME... [root@www ~]# vgs VG #PV #LV #SN Attr VSize VFree myvg 2 0 0 wz--n- 5.01g 5.01g vg0 1 4 0 wz--n- 59.99g 7.99g [root@www ~]# vgremove myvg//刪除vg Volume group "myvg" successfully removed [root@www ~]# vgs VG #PV #LV #SN Attr VSize VFree vg0 1 4 0 wz--n- 59.99g 7.99g [root@www ~]#
縮減VG：通過從vg中移除pv實現 注意：計劃移除的pv不能包含已經存儲數據的pe；如果有需要先使用pvmove移動到同vg內其它pv上；
[root@www ~]# vgcreate myvg /dev/sdb{1,2}
Volume group "myvg" successfully created
[root@www ~]# vgdisplay
--- Volume group ---
VG Name myvg
System ID
Format lvm2
Metadata Areas 2
Metadata Sequence No 1
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 0
Open LV 0
Max PV 0
Cur PV 2
Act PV 2
VG Size 5.01 GiB//大小為5G
PE Size 4.00 MiB
Total PE 1283
Alloc PE / Size 0 / 0
Free PE / Size 1283 / 5.01 GiB
VG UUID Iz9bc0-Sw38-H916-TAg3-abNh-iUJW-hjuRoB
------------------------------------------------------------------------------
我們要在myvg中移除/dev/sdb2 【縮減vg要保證縮減後的vg大小能夠存儲原來的數據】
[root@www ~]# pvmove /dev/sdb2 // 將/sdb2中的數據移動到其他pv上 No data to move for myvg [root@www ~]# vgreduce myvg /dev/sdb2//移除/dev/sdb2 Removed "/dev/sdb2" from volume group "myvg" [root@www ~]# vgdisplay myvg --- Volume group --- VG Name myvg System ID Format lvm2 Metadata Areas 1 Metadata Sequence No 2 VG Access read/write VG Status resizable MAX LV 0 Cur LV 0 Open LV 0 Max PV 0 Cur PV 1 Act PV 1 VG Size 2.00 GiB// 大小變為2G PE Size 4.00 MiB Total PE 513 Alloc PE / Size 0 / 0 Free PE / Size 513 / 2.00 GiB VG UUID Iz9bc0-Sw38-H916-TAg3-abNh-iUJW-hjuRoB
----------------------- 擴展VG： 向VG中添加更多的PV來實現 vgextend
[root@www ~]# vgs VG #PV #LV #SN Attr VSize VFree myvg 1 0 0 wz--n- 2.00g 2.00g//擴展前大小為2G vg0 1 4 0 wz--n- 59.99g 7.99g [root@www ~]# vgextend myvg /dev/sdb2//向myvg中添加/dev/sdb2 Volume group "myvg" successfully extended [root@www ~]# vgs VG #PV #LV #SN Attr VSize VFree myvg 2 0 0 wz--n- 5.01g 5.01g//大小變為5G vg0 1 4 0 wz--n- 59.99g 7.99g
3、LV相關操作 創建LV Logical Volume 創建lv: lvcreate -L #[bBsSkKmMgGtTpPeE] [-n|--name LogicalVolume{Name|Path}] VG_NAME LV設備路徑： (1) /dev/VGNAME/LVNAME (2) /dev/mapper/VGNAME-LVNAME 實際路徑：/dev/dm-# 注意：lv的大小必須為pe的整數倍
[root@www ~]# lvcreate -L 4G -n mylv myvg//創建大小為4G的LV 名字為mylv Logical volume "mylv" created [root@www ~]# lvs//查看LV LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert mylv myvg -wi-a----- 4.00g //大小為4G root vg0 -wi-ao---- 20.00g swap vg0 -wi-ao---- 2.00g usr vg0 -wi-ao---- 10.00g var vg0 -wi-ao---- 20.00g [root@www ~]# lvdisplay --- Logical volume --- LV Path /dev/myvg/mylv LV Name mylv VG Name myvg LV UUID i3tDAL-GdB4-TVIf-Efun-vVmg-Ig00-cSCdKk LV Write Access read/write LV Creation host, time www.w1.com, 2015-08-16 05:05:40 +0800 LV Status available # open 0 LV Size 4.00 GiB Current LE 1024 Segments 2 Allocation inherit Read ahead sectors auto - currently set to 256 Block device 253:4
移除LV lvremove LV_PATH
[root@www ~]# lvs LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert mylv myvg -wi-a----- 4.00g //查看lv root vg0 -wi-ao---- 20.00g swap vg0 -wi-ao---- 2.00g usr vg0 -wi-ao---- 10.00g var vg0 -wi-ao---- 20.00g [root@www ~]# lvremove /dev/myvg/mylv//移除mylv Do you really want to remove active logical volume mylv? [y/n]: y Logical volume "mylv" successfully removed [root@www ~]# lvs LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert root vg0 -wi-ao---- 20.00g //已經不存在mylv swap vg0 -wi-ao---- 2.00g usr vg0 -wi-ao---- 10.00g var vg0 -wi-ao---- 20.00g [root@www ~]#
擴展LV 存儲設備有：物理邊界 文件系統有：邏輯邊界 擴展：先擴展物理邊界，而後拉伸邏輯邊界 lvextend, lvresize resize2fs 擴展LV步驟 1、先確定目標大小：要確保此lv所在vg中有足夠的空閒可用； 2G --> 4G 4G +2G 2、擴展物理邊界 lvextend -L [+]#[bBsSkKmMgGtTpPeE] /dev/VGNAME/LVNAME 3、拉伸邏輯邊界 resize2fs /dev/VGNAME/LVNAME 例：先創建大小為2G的LV然後在擴展為4G
[root@www ~]# lvcreate -L 2G -n mylv myvg Logical volume "mylv" created [root@www ~]# lvdisplay /dev/myvg/mylv --- Logical volume --- LV Path /dev/myvg/mylv LV Name mylv VG Name myvg LV UUID yZE2SK-G9J9-dFdH-uJvK-Lln6-AS2G-UqHMjU LV Write Access read/write LV Creation host, time www.w1.com, 2015-08-16 05:12:04 +0800 LV Status available # open 0 LV Size 2.00 GiB Current LE 512 Segments 1 Allocation inherit Read ahead sectors auto - currently set to 256 Block device 253:4
格式化/myvg/mylv
[root@www ~]# mke2fs -t ext4 /dev/myvg/mylv mke2fs 1.41.12 (17-May-2010) Filesystem label= OS type: Linux Block size=4096 (log=2) Fragment size=4096 (log=2) Stride=0 blocks, Stripe width=0 blocks 131072 inodes, 524288 blocks 26214 blocks (5.00%) reserved for the super user First data block=0 Maximum filesystem blocks=536870912 16 block groups 32768 blocks per group, 32768 fragments per group 8192 inodes per group Superblock backups stored on blocks: 32768, 98304, 163840, 229376, 294912 Writing inode tables: done Creating journal (16384 blocks): done Writing superblocks and filesystem accounting information: done This filesystem will be automatically checked every 38 mounts or 180 days, whichever comes first. Use tune2fs -c or -i to override.
[root@www ~]# mkdir /nyist//創建掛載點
[root@www ~]# mount /dev/myvg/mylv /nyist//掛載
[root@www ~]# df -h//查看大小
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg0-root 20G 18G 908M 96% /
tmpfs 565M 0 565M 0% /dev/shm
/dev/sda1 190M 33M 148M 18% /boot
/dev/mapper/vg0-usr 9.8G 2.4G 6.9G 26% /usr
/dev/mapper/vg0-var 20G 294M 19G 2% /var
/dev/sda3 59G 4.7G 52G 9% /usr/soc
/dev/mapper/myvg-mylv
2.0G 3.0M 1.9G 1% /nyist
[root@www ~]# cp /etc/fstab /nyist 查看文件
[root@www ~]# cat /nyist/fstab # # /etc/fstab # Created by anaconda on Thu Mar 26 20:01:38 2015 # # Accessible filesystems, by reference, are maintained under '/dev/disk' # See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info # /dev/mapper/vg0-root / ext4 defaults 1 1 UUID=0d0698ff-1645-4ff8-af27-fc6e73573941 /boot ext4 defaults 1 2 /dev/mapper/vg0-usr /usr ext4 defaults 1 2 /dev/mapper/vg0-var /var ext4 defaults 1 2 /dev/mapper/vg0-swap swap swap defaults 0 0 tmpfs /dev/shm tmpfs defaults 0 0 devpts /dev/pts devpts gid=5,mode=620 0 0 sysfs /sys sysfs defaults 0 0 proc /proc proc defaults 0 0 /dev/sda3 /usr/soc ext4 defaults 0 0 [root@www ~]#
查看VG剩余空間：
[root@www ~]# vgs VG #PV #LV #SN Attr VSize VFree myvg 2 1 0 wz--n- 5.01g 3.01g//還有3G 我們要擴展到4G 容量足夠 vg0 1 4 0 wz--n- 59.99g 7.99g
擴展物理邊界
[root@www ~]# lvs /dev/myvg/mylv LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert mylv myvg -wi-a----- 2.00g //目前大小為2G [root@www ~]# lvextend -L 4G /dev/myvg/mylv //擴展LV 也可以寫為： lvextend -L +2G /vev/myvg/mylv Size of logical volume myvg/mylv changed from 2.00 GiB (512 extents) to 4.00 GiB (1024 extents). Logical volume mylv successfully resized [root@www ~]# lvs /dev/myvg/mylv查看mylv大小 LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert mylv myvg -wi-a----- 4.00g //擴展為4G [root@www ~]# [root@www ~]# lvdisplay /dev/myvg/mylv --- Logical volume --- LV Path /dev/myvg/mylv LV Name mylv VG Name myvg LV UUID yZE2SK-G9J9-dFdH-uJvK-Lln6-AS2G-UqHMjU LV Write Access read/write LV Creation host, time www.w1.com, 2015-08-16 05:12:04 +0800 LV Status available # open 0 LV Size 4.00 GiB //已經擴展為4G Current LE 1024 Segments 2 Allocation inherit Read ahead sectors auto - currently set to 256 Block device 253:4
查看邏輯空間大小
[root@www ~]# df -h
Filesystem Size Used Avail Use% Mounted on
......
/dev/sda3 59G 4.7G 52G 9% /usr/soc
/dev/mapper/myvg-mylv
2.0G 3.1M 1.9G 1% /nyist//依然為2G
[root@www ~]#
拉伸邏輯邊界
[root@www ~]# resize2fs /dev/myvg/mylv//擴展邏輯邊界
resize2fs 1.41.12 (17-May-2010)
Filesystem at /dev/myvg/mylv is mounted on /nyist; on-line resizing required
old desc_blocks = 1, new_desc_blocks = 1
Performing an on-line resize of /dev/myvg/mylv to 1048576 (4k) blocks.
The filesystem on /dev/myvg/mylv is now 1048576 blocks long.
[root@www ~]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg0-root 20G 18G 908M 96% /
tmpfs 565M 0 565M 0% /dev/shm
/dev/sda1 190M 33M 148M 18% /boot
/dev/mapper/vg0-usr 9.8G 2.4G 6.9G 26% /usr
/dev/mapper/vg0-var 20G 294M 19G 2% /var
/dev/sda3 59G 4.7G 52G 9% /usr/soc
/dev/mapper/myvg-mylv
3.9G 4.0M 3.7G 1% /nyist//大小已經為3.9G 成功擴展
[root@www ~]#
============================================================ 縮減LV 注意： 1、縮減LV必須要離線 2、必須先縮減文件系統，然後再縮減LV大小 過程： 1、先確定縮減後的目標大小：要確保縮減後的大小能夠容納現在的所有數據； 2、卸載邏輯卷，並強制做文件系統一致性檢查； e2fsck -f /dev/VGNAME/LVNAME 3、縮減邏輯邊界 resize2fs /dev/VGNAME/LVNAME #[bBsSkKmMgGtTpPeE] // resize2fs /dev/myvg/mylv 3G 4、縮減物理邊界 lvreduce -L [-]#[bBsSkKmMgGtTpPeE] /dev/VGNAME/LVNAME //lvreduce -L 3G /dev/myvg/mylv //縮減到3G eg:
[root@www ~]# umount /nyist [root@www ~]# e2fsck -f /dev/myvg/mylv e2fsck 1.41.12 (17-May-2010) Pass 1: Checking inodes, blocks, and sizes Pass 2: Checking directory structure Pass 3: Checking directory connectivity Pass 4: Checking reference counts Pass 5: Checking group summary information /dev/myvg/mylv: 12/262144 files (0.0% non-contiguous), 33871/1048576 blocks [root@www ~]# resize2fs /dev/myvg/mylv 3G//縮減邏輯邊界 resize2fs 1.41.12 (17-May-2010) Resizing the filesystem on /dev/myvg/mylv to 786432 (4k) blocks. The filesystem on /dev/myvg/mylv is now 786432 blocks long. [root@www ~]# lvreduce -L 3G /dev/myvg/mylv//縮減物理邊界 WARNING: Reducing active logical volume to 3.00 GiB THIS MAY DESTROY YOUR DATA (filesystem etc.) Do you really want to reduce mylv? [y/n]: y Size of logical volume myvg/mylv changed from 4.00 GiB (1024 extents) to 3.00 GiB (768 extents). Logical volume mylv successfully resized [root@www ~]#
驗證：
[root@www ~]# lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
mylv myvg -wi-a----- 3.00g //大小3G
root vg0 -wi-ao---- 20.00g
swap vg0 -wi-ao---- 2.00g
usr vg0 -wi-ao---- 10.00g
var vg0 -wi-ao---- 20.00g
[root@www ~]# mount /dev/myvg/mylv /nyist
[root@www ~]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg0-root 20G 18G 908M 96% /
tmpfs 565M 0 565M 0% /dev/shm
/dev/sda1 190M 33M 148M 18% /boot
/dev/mapper/vg0-usr 9.8G 2.4G 6.9G 26% /usr
/dev/mapper/vg0-var 20G 294M 19G 2% /var
/dev/sda3 59G 4.7G 52G 9% /usr/soc
/dev/mapper/myvg-mylv
2.9G 3.1M 2.8G 1% /nyist//大小2.9G
[root@www ~]#
