使用Clustershell搭建Kafka和Zookeeper集群(原創)

1、 安裝環境

虛擬機環境，共有三台虛擬主機：
Router1 192.168.3.116
Router2 192.168.3.115
Router3 192.168.3.121

2、CMD工具

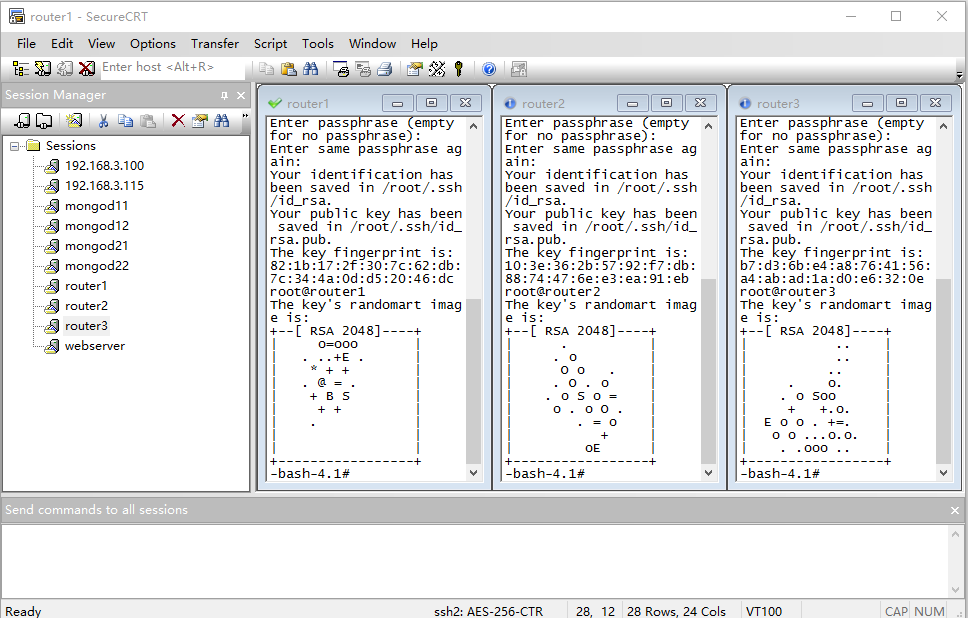

SecureCRT 7.2.3
具有Tile功能，可以將多個session窗口並列顯示。
設置在菜單windows ->Tile Vertically，並且有顯示 command windows功能.設置在菜單View -> Command windows.在command windows中可以右鍵設置 send commands to all sessions菜單，就可以在commandwindows中輸入命令後向所有sessions發送輸入的命令。

3、搭建zookeeper集群<喎?http://www.2cto.com/kf/ware/vc/" target="_blank" class="keylink">vcD4NCjxwPjMuMcno1sO24Myou/rG98Piw9zC6zwvcD4NCjxwPtTaY29tbWFuZCB3aW5kb3dz1tDK5Mjrw/zB7jwvcD4NCjxwcmUgY2xhc3M9"brush:sql;"> -bash-4.1# ls /root/.ssh known_hosts //刪除原有文件 -bash-4.1# rm -rf /root/.ssh/* -bash-4.1# ls /root/.ssh //生成密鑰文件 -bash-4.1# ssh-keygen -t rsa Generating public/private rsa keypair. Enter file in which to save the key(/root/.ssh/id_rsa): Enter passphrase (empty for nopassphrase): Enter same passphrase again: Your identification has been savedin /root/.ssh/id_rsa. Your public key has been saved in/root/.ssh/id_rsa.pub. The key fingerprint is: 82:1b:17:2f:30:7c:62:db:7c:34:4a:0d:d5:20:46:dcroot@router1 The key's randomart image is: +--[ RSA 2048]----+ | o=ooo | | . ..+E . | | * + + | | . @ = . | | + B S | | + + | | . | | | | | +-----------------+ //查看是否生成了密鑰文件 -bash-4.1# ls /root/.ssh id_rsa id_rsa.pub //向主機一發送密鑰文件 -bash-4.1# ssh-copy-id -i /root/.ssh/id_rsa.pub router1 The authenticity of host 'router1(::1)' can't be established. RSA key fingerprint is12:e8:9d:2d:ee:11:9e:a3:40:98:bf:eb:43:36:01:c7. Are you sure you want to continueconnecting (yes/no)? yes Warning: Permanently added'router1' (RSA) to the list of known hosts. root@router1's password: Now try logging into the machine,with "ssh 'router1'", and check in: .ssh/authorized_keys to make sure we haven't added extrakeys that you weren't expecting. -bash-4.1# ssh-copy-id -i /root/.ssh/id_rsa.pub router2 The authenticity of host 'router2(192.168.3.115)' can't be established. RSA key fingerprint is12:e8:9d:2d:ee:11:9e:a3:40:98:bf:eb:43:36:01:c7. Are you sure you want to continueconnecting (yes/no)? yes Warning: Permanently added'router2,192.168.3.115' (RSA) to the list of known hosts. root@router2's password: Now try logging into the machine,with "ssh 'router2'", and check in: .ssh/authorized_keys to make sure we haven't added extrakeys that you weren't expecting. -bash-4.1# ssh-copy-id -i /root/.ssh/id_rsa.pub router3 The authenticity of host 'router3(192.168.3.121)' can't be established. RSA key fingerprint is12:e8:9d:2d:ee:11:9e:a3:40:98:bf:eb:43:36:01:c7. Are you sure you want to continueconnecting (yes/no)? yes Warning: Permanently added'router3,192.168.3.121' (RSA) to the list of known hosts. root@router3's password: Now try logging into the machine,with "ssh 'router3'", and check in: .ssh/authorized_keys to make sure we haven't added extrakeys that you weren't expecting. //檢查三個主機的密鑰信息是否已經全部同步 -bash-4.1# cat /root/.ssh/authorized_keys ssh-rsaAAAAB3NzaC1yc2EAAAABIwAAAQEAo7uexe+lKTBWgDeJarTUmhHqW466K85AYDl6IbFZINFKJquVV9wb1+54KDltXopUYHh2TULY00XFWQ02zHp76jCFq8kYfb+bLlF0He2CP+VegiOs0o0gZXYLkb0zvVEkVju1/2jqAPf+Q3wEcKao2Qu/EppBDLEMGsfFPUp6GmIG6GLd/019zrhupKqzm7zd0csk7uxKoVeP3LW6wpNPbqV6DUwC48AosyVjdwdviCGG+Cmqi5DHy6pwAldo9Hru9n5wtHLUI3AehDjBxZ64SHrond2cMQyVV/yYSpexqBdZsAstKQAW24IBl+qcgu2y4CcbkSVYjjsG5dvZNjXuJQ==root@router1 ssh-rsaAAAAB3NzaC1yc2EAAAABIwAAAQEAxEULXbppPx8In6csFdPHSEG22s/Lkz7xCQ8FGFbkJj5NuHAt4uYdtEdkPUMfsW2d+hmAKDDcZI+Jgsa4dgkVe7OX1qYsuw4hvtN9V/RCpFrk4y/FchaEMwa08w1f0PcuC39AdARuBDCgHRfUEV7GWdS2Sh3+OJpzryflb7yGbGobys7hHbltHfnwiswiram72/Mob62gdqg7FtOC9K4AfejC/g0LBnajAhIALBqp+SSHpWWUFo9vEOAquEyE+DHFb7ojD+psYu8rZenZDSP/ibWE1gWvLADFCBukpi5RBM2mSilTcdDMunw9wjs0jUGiJZtR6y/rZk2QLwaOISmOJQ==root@router3 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAyLQZveV/kaD/1IQJPfB+WKyWtPZryECIeXMFufmC8QkQcdQ9SrZxMNzLshQiES8X+dGlNOnvqUlPaegpcbdTpsdKYw+2CbbYyHICePNqFf2sQzOz0GduXnrgSZom8uWfZVZKSGbzzvWtE45Z2NNSsp0/vtBI0ZsfCF93wYDMpKZbfG1iH/FhWpMh0RVpQgBzwQIxF9MsMlrhT/bE1Q996+irqickL44KzwvEAUPqQnicsyX80Swn2Ujuv0g6zdQWigji2YQGlSi3mnhwp7uoi834QQLMoYO4yu7ZCY/fxe6g73KzN15Ghc7Mhjh2PfbFPj7Buwi3/4QNM7sRy+ktPw== root@router2

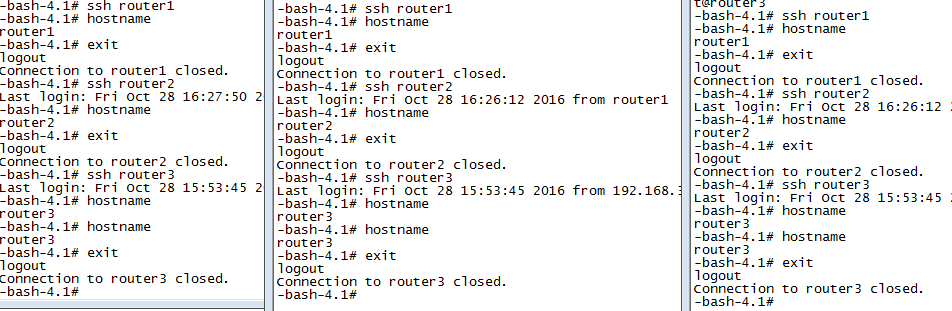

//檢查免密登錄情況

3.2設置zookeeper集群

在主機1中安裝clustershell工具

訪問網站：http://clustershell.readthedocs.io/en/latest/install.html#red-hat-enterprise-linux-and-centos
$ yum --enablerepo=extrasinstall epel-release
$ yum installclustershell vim-clustershell

配置clustershell，建立group

**在/etc/clustersheel目錄下建立groups文件**
Cd /etc/clustersheel
Vi groups
kafka: router[1-3]
注：router是主機名的前綴
在主機1中拷貝和解壓安裝包
-bash-4.1# tar -zxvfzookeeper-3.4.9.tar.gz
-bash-4.1# tar -zxvfkafka_2.11-0.8.2.1.tgz

通過clustershell統一拷貝zookeeper和 kafaka的安裝包
-bash-4.1# clush -g kafka -c/opt/kafka/

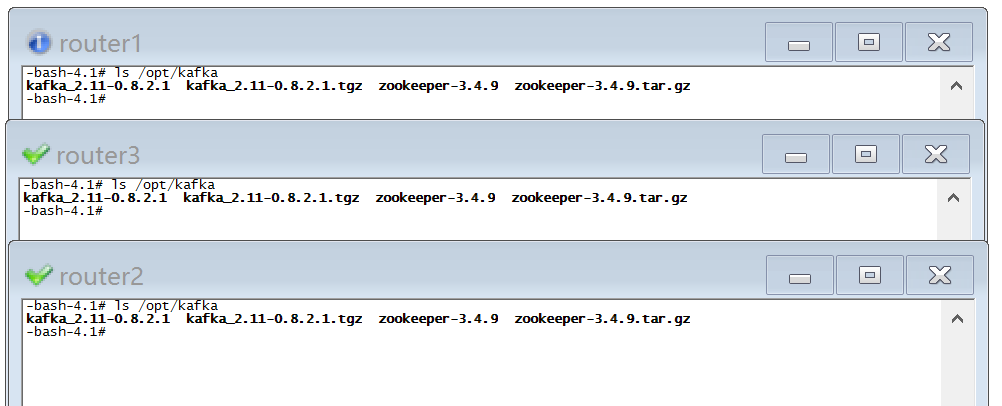

驗證是否拷貝成功
Ls /opt/kafka

修改zookeeper的配置文件

-bash-4.1# cp zoo_sample.cfgzoo.cfg
修改每台主機的zoo.cfg中的zoo.cfg文件
增加集群信息
server.1=router1:2888:3888
server.2=router2:2888:3888
server.3=router3:2888:3888
注：2888端口是作為leader與follow間通訊的，3888端口是作為leader選舉的。

同步zookeeper的配置文件
-bash-4.1# clush -g kafka -c/opt/kafka/zookeeper-3.4.9/conf/zoo.cfg

創建zookeeper數據目錄
-bash-4.1# clush -g kafka mkdir/tmp/zookeeper


在每台機器中建立myid文件
主機1執行
-bash-4.1# echo "1" >/tmp/zookeeper/myid

主機2執行
-bash-4.1# echo "2" >/tmp/zookeeper/myid

主機3執行
-bash-4.1# echo "3" >/tmp/zookeeper/myid

主機1上驗證
-bash-4.1# clush -g kafka cat/tmp/zookeeper/myid
router2: 2
router3: 3
router1: 1

啟動zookeeper集群，在主機1上執行

-bash-4.1# clush -g kafka"/opt/kafka/zookeeper-3.4.9/bin/zkServer.sh start/opt/kafka/zookeeper-3.4.9/conf/zoo.cfg"
router3: ZooKeeper JMX enabled by default
router3: Using config: /opt/kafka/zookeeper-3.4.9/conf/zoo.cfg
router2: ZooKeeper JMX enabled by default
router2: Using config: /opt/kafka/zookeeper-3.4.9/conf/zoo.cfg
router1: ZooKeeper JMX enabled by default
router1: Using config: /opt/kafka/zookeeper-3.4.9/conf/zoo.cfg
router3: Starting zookeeper ... STARTED
router2: Starting zookeeper ... STARTED
router1: Starting zookeeper ... STARTED

參看監聽的端口
-bash-4.1# clush -gkafka lsof -i:2181
router3: COMMAND  PIDUSER  FD  TYPE DEVICE SIZE/OFF NODE NAME
router3: Java   15172root  23u IPv6 111500     0t0 TCP *:eforward (LISTEN)
router1: COMMAND  PIDUSER  FD  TYPE DEVICE SIZE/OFF NODE NAME
router1: java   17708root  23u IPv6 139485     0t0 TCP *:eforward (LISTEN)
router2: COMMAND  PIDUSER  FD  TYPE DEVICE SIZE/OFF NODE NAME
router2: java   16866root  23u IPv6 119179     0t0 TCP *:eforward (LISTEN)

-bash-4.1# clush -g kafka lsof -i:2888

router3: COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODENAME
router3: java   15172 root  27u IPv6 111517     0t0 TCP router3:spcsdlobby (LISTEN)
router3: java   15172 root  28u IPv6 111518     0t0 TCP router3:spcsdlobby->router1:49864 (ESTABLISHED)
router3: java   15172 root  29u IPv6 111519     0t0 TCP router3:spcsdlobby->router2:60446 (ESTABLISHED)
router2: COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODENAME
router2: java   16866 root  26u IPv6 119190     0t0 TCP router2:60446->router3:spcsdlobby (ESTABLISHED)
router1: COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODENAME
router1: java   17708 root  27u IPv6 139496     0t0 TCP router1:49864->router3:spcsdlobby (ESTABLISHED)
-bash-4.1#clush -g kafka lsof -i:3888
router3: COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODENAME
router3: java   15172 root  24u IPv6 111509     0t0 TCP router3:ciphire-serv (LISTEN)
router3: java   15172 root  25u IPv6 111513     0t0 TCP router3:40480->router1:ciphire-serv (ESTABLISHED)
router3: java   15172 root  26u IPv6 111515     0t0 TCP router3:35494->router2:ciphire-serv (ESTABLISHED)
router1: COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODENAME
router1: java   17708 root  24u IPv6 139490     0t0 TCP router1:ciphire-serv (LISTEN)
router1: java   17708 root  25u IPv6 139494     0t0 TCP router1:ciphire-serv->router2:49233 (ESTABLISHED)
router1: java   17708 root  26u IPv6 139495     0t0 TCP router1:ciphire-serv->router3:40480 (ESTABLISHED)
router2: COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODENAME
router2: java   16866 root  24u IPv6 119183     0t0 TCP router2:ciphire-serv (LISTEN)
router2: java   16866 root  25u IPv6 119186     0t0 TCP router2:49233->router1:ciphire-serv (ESTABLISHED)
router2: java   16866 root  27u IPv6 119188     0t0 TCP router2:ciphire-serv->router3:35494 (ESTABLISHED)

#連接第一個主機的zookeeper，建立測試鍵值進行測試
-bash-4.1# bin/zkCli.sh -server router1
Connecting to router1
[zk: router1(CONNECTED) 8] create/test_install hello
Created /test_install
[zk: router1(CONNECTED) 9] ls/
[test_install, zookeeper]

#連接第二個主機的zookeeper，查看測試鍵值是否存在
-bash-4.1# bin/zkCli.sh -serverrouter2
Connecting to router2
ls /
[test_install, zookeeper]

4、 建立kafaka集群
修改第一台主機中kafka目錄的config子目錄中的server.properties配置文件

zookeeper.connect=router1:2181,router2:2181,router3:2181/kafka

將server.properties配置文件分發到其他兩台主機中

-bash-4.1# clush-g kafka -c /opt/kafka/kafka_2.11-0.8.2.1/config/server.properties

分別修改三台主機的server.properties配置文件，配置不同的broker.id

第一台主機的broker.id設置為broker.id=1
第二台主機的broker.id設置為broker.id=2
第三台主機的broker.id設置為broker.id=3

啟動kafka集群

-bash-4.1# clush-g kafka /opt/kafka/kafka_2.11-0.8.2.1/bin/kafka-server-start.sh -daemon/opt/kafka/kafka_2.11-0.8.2.1/config/server.properties

驗證9092端口

-bash-4.1# clush-g kafka lsof -i:9092
router3:COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODE NAME
router3:java   15742 root  55u IPv6 120391     0t0 TCP *:XmlIpcRegSvc (LISTEN)
router3:java   15742 root  56u IPv6 120394     0t0 TCP router3:38028->router1:XmlIpcRegSvc(ESTABLISHED)
router3:java   15742 root  57u IPv6 120395     0t0 TCP router3:51440->router3:XmlIpcRegSvc(ESTABLISHED)
router3:java   15742 root  58u IPv6 120396     0t0 TCP router3:XmlIpcRegSvc->router3:51440(ESTABLISHED)
router3:java   15742 root  59u IPv6 120397     0t0 TCP router3:46242->router2:XmlIpcRegSvc(ESTABLISHED)
router1:COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODE NAME
router1:java   18531 root  55u IPv6 151926     0t0 TCP *:XmlIpcRegSvc (LISTEN)
router1:java   18531 root  56u IPv6 151929     0t0 TCP router1:XmlIpcRegSvc->router3:38028(ESTABLISHED)
router2:COMMAND  PID USER  FD  TYPE DEVICE SIZE/OFF NODE NAME
router2:java   17538 root  55u IPv6 129254     0t0 TCP *:XmlIpcRegSvc (LISTEN)
router2:java   17538 root  56u IPv6 129257     0t0 TCP router2:XmlIpcRegSvc->router3:46242 (ESTABLISHED)

建立測試是topic

-bash-4.1#bin/kafka-topics.sh -create --topic test1 --zookeeper router1:2181/kakfa--partitions 3 --replication-factor 2
Created topic"topic1".

-bash-4.1#bin/kafka-topics.sh -describe --topic test1 --zookeeper router1:2181/kafka
Topic:topic1   PartitionCount:3       ReplicationFactor:2    Configs:
        Topic: topic1  Partition: 0   Leader: 1      Replicas: 1,2  Isr: 1,2
        Topic: topic1  Partition: 1   Leader: 2      Replicas: 2,3  Isr: 2,3
        Topic: topic1  Partition: 2   Leader: 3      Replicas: 3,1  Isr: 3,1

發送測試消息

消費測試消息

至此Kafka集群搭建完成！
